Landscape drainage management is the practice of controlling surface water and subsurface groundwater to protect structures, preserve soil health, and maintain functional outdoor spaces. For property managers and homeowners, poor drainage is not just an aesthetic problem. It causes foundation damage, mold growth, and soil erosion that can cost tens of thousands of dollars to repair. Effective drainage design combines grading, subsurface systems, and site-specific planning to direct water away from buildings and toward legal discharge points. This guide covers the core techniques, cost realities, and diagnostic steps you need to make informed decisions in 2026.
What is landscape drainage management and how does it work?
Landscape drainage management is defined as the coordinated system of techniques used to move excess water away from structures, turf, and planted areas before it causes damage. The industry term for this practice is “stormwater management,” though drainage management also encompasses groundwater control and subsurface water movement. Both terms apply here, and understanding the difference helps you communicate clearly with contractors.
The core goal is simple: water must move away from your property at a controlled rate, toward a legal and non-destructive discharge point. Without that endpoint, any drainage system you install simply relocates the problem. Dumping water onto neighboring properties creates legal liability and can result in civil claims. Identifying a valid discharge point, such as a municipal storm drain, a dry well, or a retention basin, is the first step in any drainage plan.

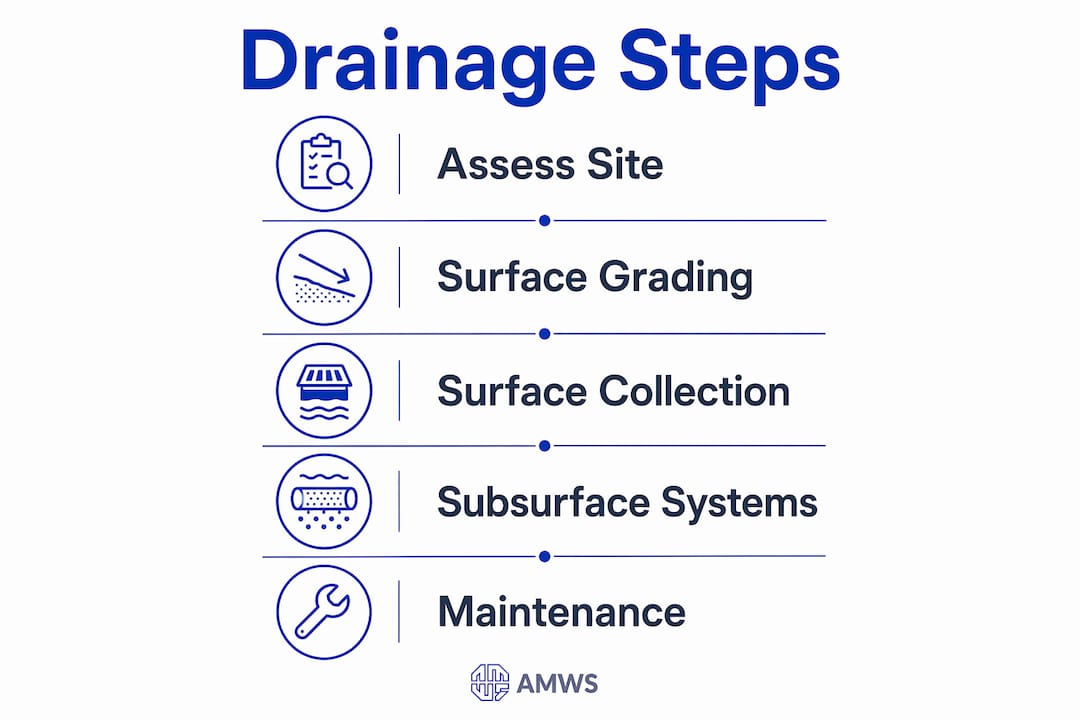

Effective drainage management relies on three layers working together: surface grading, surface collection features, and subsurface pipe systems. Each layer handles a different volume and speed of water movement. A property with only one layer in place will fail under heavy rainfall.
Surface grading: the foundation of every drainage plan
Proper grading requires a slope of at least 6 inches over the first 10 feet from the house, which equals a 2%–5% grade. That slope forces sheet flow away from the foundation before water has a chance to pool or infiltrate near the structure. Grading is the lowest-cost intervention and the highest-impact one. Skipping it and jumping straight to pipe systems is one of the most common and expensive mistakes property owners make.
Surface collection: swales, berms, and rain gardens
Swales are shallow, vegetated channels that collect and slow surface runoff. Berms are raised soil ridges that redirect sheet flow around structures or low spots. Rain gardens and bioswales treat stormwater as a resource, filtering pollutants naturally and reducing the load on municipal sewer systems. These features work best on properties with moderate slopes and permeable soils.
Subsurface systems: French drains and dry wells
French drains are perforated pipes buried in gravel-filled trenches that intercept groundwater and channel it to a discharge point. Proper French drain installation requires at least a 4-inch gravel envelope on all pipe sides and a geotextile filter fabric to prevent clay soil from clogging the system. This step is frequently skipped in DIY installations, which causes premature failure within two to three years. Dry wells and retention basins collect water underground and release it slowly into surrounding soil, making them useful where surface discharge is not available.
Pro Tip: Before purchasing any drainage materials, walk your property during an active rain event. Note exactly where water pools, where it flows, and where it exits the property. That 20-minute observation will save you from installing the wrong system in the wrong location.
How does soil type and property layout affect drainage strategies?
Soil type is the single biggest variable in drainage system design. It determines how fast water moves through the ground and which systems will actually work on your property.
- Sandy soils drain quickly and favor subsurface solutions like dry wells and French drains. Surface pooling is rare, but water can move laterally and undermine foundations if not directed properly.
- Clay soils drain slowly and hold water near the surface for extended periods. French drains in clay require the geotextile filter fabric described above. Without it, clay particles migrate into the gravel and block the pipe within a few seasons.
- Rocky soils prevent deep excavation and limit subsurface options. Surface grading and swales become the primary tools on rocky sites.
- Compacted soils in high-traffic commercial areas behave like clay regardless of their composition. Aeration and amended topsoil layers can restore permeability before drainage systems are installed.
Property layout adds another layer of complexity. Roof area directly determines how much water your drainage system must handle. A 2,000-square-foot roof generates roughly 1,200 gallons of runoff per inch of rainfall. That volume must go somewhere, and a simple downspout extension rarely moves it far enough from the foundation. Calculating runoff volume before sizing a drainage system prevents undersized pipes and flooded basements.
The table below summarizes how soil type and site features map to the most effective drainage solutions.
| Soil or site condition | Recommended primary solution | Key installation note |
|---|---|---|
| Sandy soil | Dry well or French drain | Verify discharge capacity before sizing |
| Clay soil | French drain with filter fabric | Geotextile wrap is non-negotiable |
| Rocky soil | Surface swales and regrading | Limit excavation depth to avoid bedrock |
| Compacted urban soil | Aeration plus surface grading | Restore permeability before pipe work |
| Large roof or hardscape area | Catch basins with piped discharge | Size pipe diameter to calculated runoff volume |
Slope also shapes your options. Steep slopes accelerate runoff and increase erosion risk, making terracing or check dams necessary before any pipe system is installed. Flat properties face the opposite problem: water has nowhere to go without a deliberate grade change or a subsurface collection system. Identifying legal discharge points is especially critical on flat sites, where gravity alone cannot move water off the property without engineered assistance.
What do drainage projects cost, and what is the return?
The national average cost for a professional yard drainage project is $4,618, with a typical range of $2,145 to $7,159. Simple fixes like regrading a small area start at $800. Extensive systems with multiple catch basins, piped networks, and retention features can reach $15,000. That range reflects the wide variation in site complexity, soil conditions, and local labor costs.
The return on that investment is measurable. Effective drainage systems yield a 50%–75% ROI by preventing foundation repairs that typically cost $2,000 to $10,000 and by avoiding mold remediation, which can exceed those figures on larger properties. That math makes drainage one of the few property improvements where the avoided cost alone justifies the upfront expense.
Budget planning for property managers should account for three cost categories:
- Diagnosis and design: Site assessment, soil testing, and drainage plan preparation. Skipping this phase is the leading cause of failed installations.
- Installation: Excavation, materials, and labor for grading, pipe systems, and surface features.
- Maintenance: Annual inspection of pipe outlets, clearing of catch basin grates, and reseeding of swale vegetation after heavy storm seasons.
Deferred drainage maintenance compounds costs quickly. A blocked French drain outlet floods the system and forces full excavation to clear. Catching that blockage in an annual inspection costs a fraction of the repair.
How do you diagnose drainage problems and choose the right fix?
Diagnosis before installation is the professional standard. Tracing water sources during rain events and verifying soil permeability and discharge points before any system is installed prevents costly mistakes. Skipping diagnosis and installing drains based on symptom location alone is the most common error contractors see on remediation calls.
Follow these steps to diagnose your drainage situation accurately:
- Observe during rainfall. Walk the property during or immediately after a moderate rain event. Mark every location where water pools, flows toward the structure, or exits the property boundary.

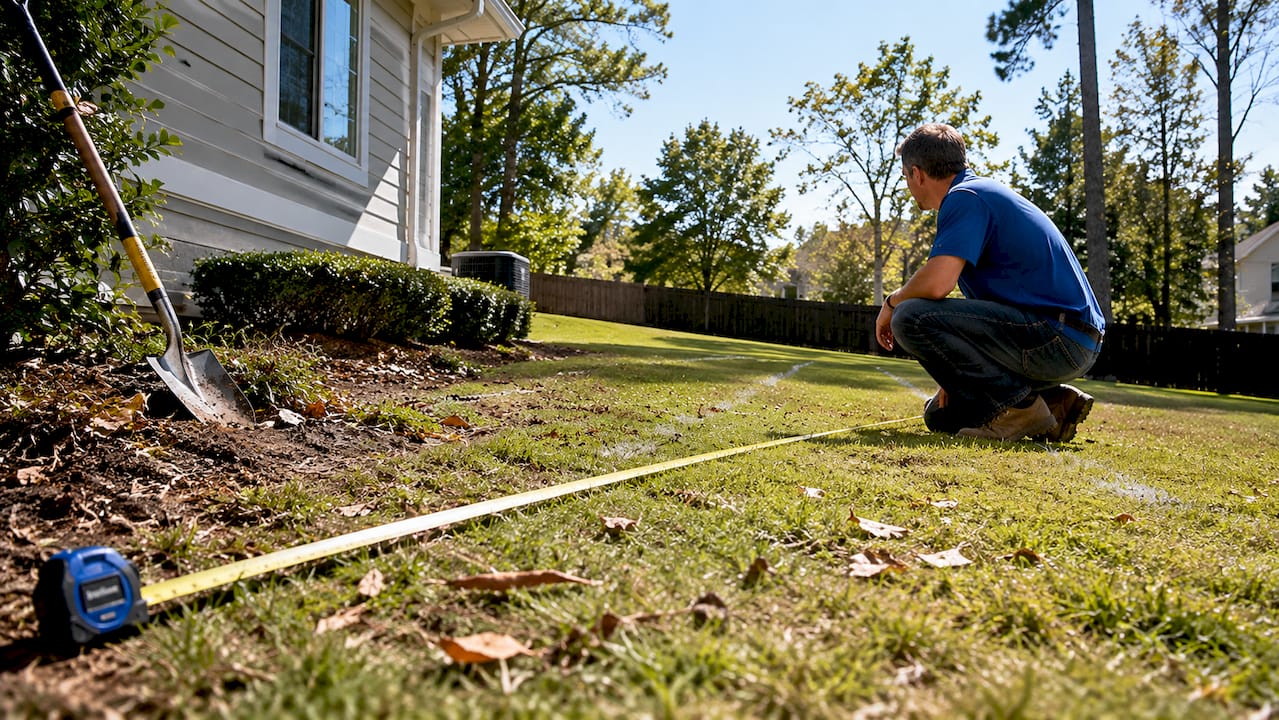

- Check existing grades. Use a level and tape measure to verify the slope within 10 feet of the foundation. Any area that slopes toward the building needs regrading before other solutions are added.
- Test soil permeability. Dig a hole 12 inches deep, fill it with water, and time how long it takes to drain. Sandy soils drain in under an hour. Clay soils may hold water for 12 hours or more. This result determines whether subsurface systems will function on your site.
- Identify the discharge point. Locate the nearest legal outlet: a storm drain, a dry creek bed, or a low point at the property boundary that does not direct water onto neighboring land. If no outlet exists, a dry well or retention basin becomes the required solution.
- Match the fix to the root cause. Pooling near the foundation with good soil permeability points to a grading problem. Pooling in a low spot with slow-draining soil points to a subsurface collection need. Foundation wetness after roof runoff points to undersized or missing downspout management.
Pro Tip: Never install a French drain without first confirming where the outlet pipe will discharge. A drain with no exit point simply moves water underground until it resurfaces, often inside a crawl space or basement.
Sustainable water management practices like permeable paving and rain gardens can reduce the load on pipe systems significantly. These features work best as complements to grading and subsurface drainage, not replacements for them. For commercial lawn care situations, integrating these features into the overall maintenance plan extends system life and reduces annual repair costs.
Key Takeaways
Effective landscape drainage management protects property value by combining proper grading, correctly installed subsurface systems, and verified legal discharge points before any work begins.
| Point | Details |
|---|---|
| Grading comes first | A 2%–5% slope away from the foundation prevents most water infiltration before pipe systems are needed. |
| Soil type drives system choice | Clay soils require geotextile filter fabric in French drains; sandy soils favor dry wells and open subsurface systems. |
| Diagnose before you install | Trace water sources during rain events and confirm a legal discharge point before purchasing any materials. |
| Costs are predictable | Professional drainage projects average $4,618, with a 50%–75% ROI from avoided foundation and mold repairs. |
| Roof runoff is often underestimated | A 2,000-square-foot roof produces roughly 1,200 gallons per inch of rain, requiring properly sized collection systems. |
What I’ve learned after years of watching drainage projects fail
After working with commercial properties across multiple climates and soil types, the pattern in failed drainage projects is almost always the same: someone installed a solution before understanding the problem.
The most expensive remediation calls I’ve seen involve French drains installed without filter fabric in clay-heavy soils. Within two seasons, the clay migrates into the gravel, the pipe clogs, and the water table rises exactly where it did before. The homeowner or property manager spent $5,000 to $8,000 and ended up back at square one. The fix required full excavation and reinstallation with proper materials.
The second most common failure is the missing discharge point. A contractor installs a beautiful catch basin system, runs the pipe to the property edge, and stops. The pipe outlet sits six inches above grade with nowhere to go in a heavy storm. Water backs up, the system surcharges, and the catch basin overflows directly onto the foundation. This is not a materials problem. It is a planning problem, and it is entirely avoidable.
My honest recommendation: treat the diagnostic phase as a non-negotiable investment. Spend the money on a professional site assessment before you spend anything on materials or installation. The assessment will tell you your soil type, your runoff volume, and your legal discharge options. Every dollar spent on diagnosis saves three to five dollars in remediation. That ratio holds across property sizes and drainage complexity levels.
Drainage is not a glamorous investment. You will not see it the way you see new plantings or a repaved parking lot. But the properties that handle water correctly are the ones that avoid the $10,000 foundation repair, the mold remediation, and the liability claim from a flooded neighbor. That invisible protection is exactly what good drainage management delivers.
— MOHAMED AWAD
How AMWS Group helps property managers protect their properties
Property managers who handle drainage reactively, fixing problems after water damage appears, consistently spend more than those who build drainage management into their regular maintenance cycle.
AMWS Group provides commercial landscaping services that include drainage assessment, grading correction, and ongoing maintenance for commercial properties. The team works directly with property managers to identify site-specific drainage risks before they become structural problems. AMWS Group’s commercial maintenance programs include annual drainage inspections, catch basin clearing, and swale maintenance as part of a coordinated property care plan. Contact AMWS Group to schedule a site assessment and build a drainage management plan that fits your property’s specific conditions and budget.
FAQ
What is landscape drainage management?
Landscape drainage management is the practice of controlling surface and subsurface water movement to protect structures, soil, and plantings from water damage. It combines grading, drainage systems, and discharge planning into a coordinated approach.
What slope is required for proper yard drainage?
Proper grading requires a minimum slope of 6 inches over the first 10 feet from the foundation, equal to a 2%–5% grade, to move water away from the structure effectively.
How much does a professional drainage system cost?
The national average cost for a professional yard drainage project is $4,618, with a typical range of $2,145 to $7,159. Simple fixes start at $800, while complex systems can reach $15,000.
What is a French drain and when do you need one?
A French drain is a perforated pipe buried in a gravel-filled trench that intercepts groundwater and channels it to a discharge point. You need one when surface grading alone cannot prevent subsurface water from reaching the foundation or pooling in low areas.
Can poor drainage affect property value?
Poor drainage causes foundation damage, mold growth, and soil erosion that directly reduce property value. Effective drainage systems yield a 50%–75% ROI by preventing foundation repairs costing $2,000 to $10,000 and avoiding mold remediation expenses.
